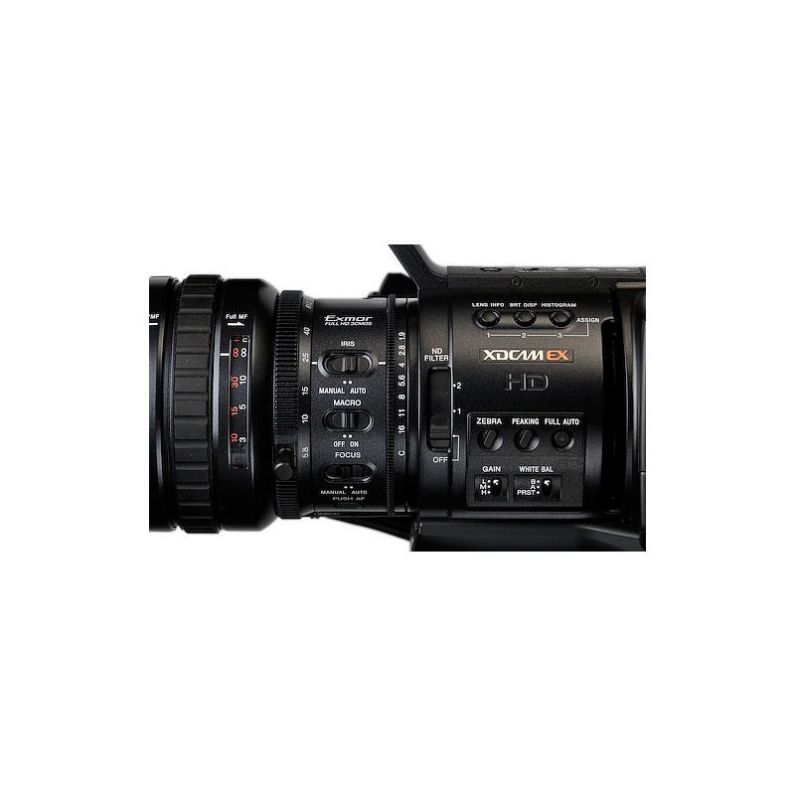

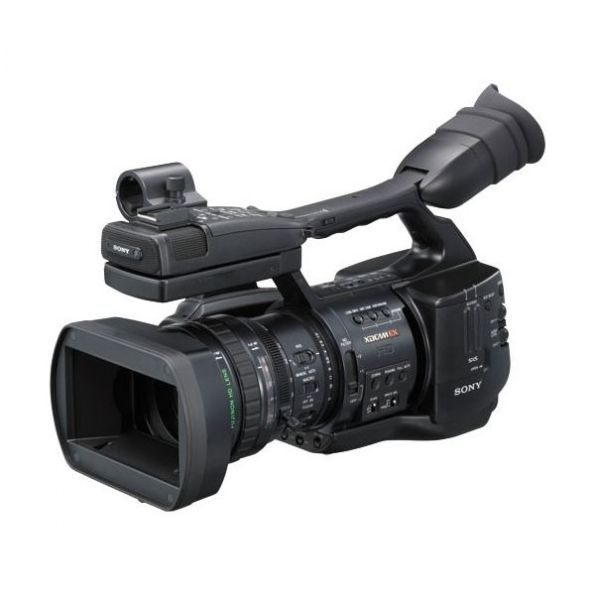

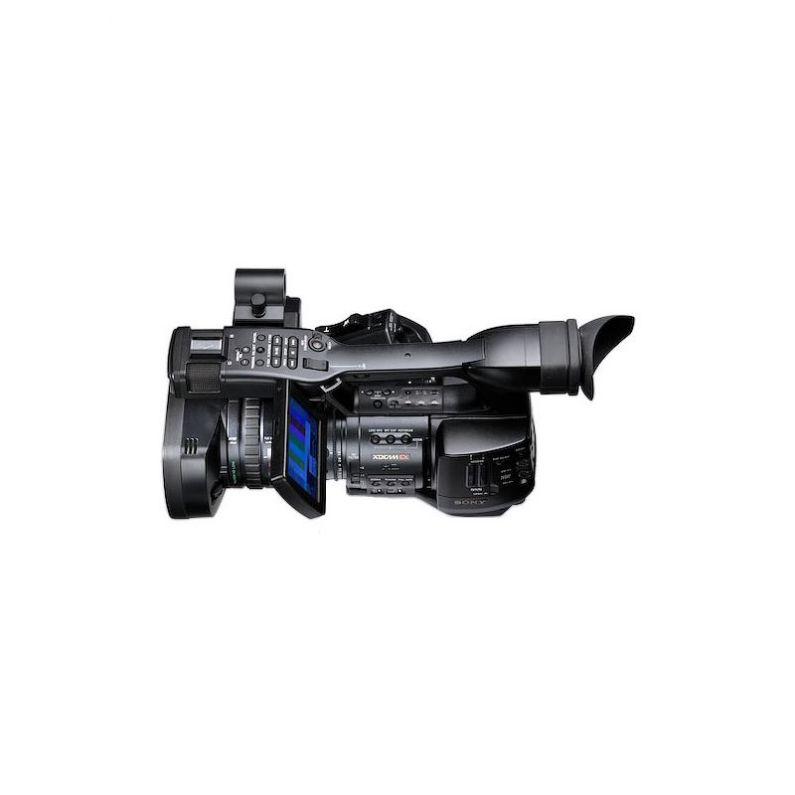

Sony PMW-EX1 1080P HD Professional Camcorder Sony PMW-EX1 1080P HD Professional CamcorderSony PMW-EX1 1080P HD Professional Camcorder
Sony Camcorders

Sony PMW-EX1 1080P HD Professional Camcorder

SKU: 416792
MPN: PMW-EX1
BRAND: Sony
CONDITION: New

Extended Warranties Available:

Availability: In Stock
Fast & Free Shipping (Ships in 1-2 Business Days)
MSRP: $3,299.99
You Pay: $2,585.00




Need help? Call Us:
800-213-7037

Filters & Filter Kits

Memory & Digital Media

Microphones & Light Meters

Tripods & Monopods

Screen Protectors & Cleaning Kits

Sony's PMW-EX1 XDCAM EX HD Camcorder . While retaining everything that was right about the previous camera, Sony has listened to its professional users and taken several steps forward, not only improving ergonomics and convenience, but bringing a whole new set of features to the world's only full HD compact camcorder. Like its predecessor, the PMW-EX1 core is its three 1/2"-type CMOS sensors and 14x Fujinon zoom lens. This heavyweight imaging combo captures full 1920 x 1080 hi-def images to solid state SxS PRO memory cards (sold separately) at multiple bit rates, resolutions and frame rates. Whether you're shooting weddings, documentaries or feature films, there's a frame rate and resolution for you--from 60fps and native 23.98p recording at 720p, to 1fps at 1080i. SxS PRO cards of up to 64GB in capacity can be used. For 64GB cards, the camera will require software version 1.15 or greater installed from Sony's website. The way to install it is by downloading the version to a computer, connecting the camera to the computer by USB cable, and selecting the upgrade option in "Others" tab of the camera's menu table. If your computer has an SxS slot, you can just transfer the downloaded file onto the SxS card and then pop the card into the camera to transfer the download, which in this case also you would do through the "Others" menu. 64GB cards can record 200 minutes in HQ mode and 280 in SP mode. But along with its already proven imaging abilities and professional workflow, the PMW-EX1R expands its usability by offering DVCAM SD recording, XDCAM HD compatibility, and HDMI output. That means no more time-consuming downconverting or transcoding to work in different formats or with different recording and playback devices. Other new features add even more convenience and flexibility, including a high-resolution 1.23MP viewfinder, Cache Record, one-click S&Q button, auto iris, and even image inversion for flipping the image while shooting with a 35mm adapter. Make no mistake: the Sony PMW-EX1R is the first HD compact camcorder that truly does have it all. Other Features Built-in ND filter wheel: 1: Clear, 2: 1/8ND, 3: 1/64ND Selectable gain: -3, 0, 3, 6, 9, 12, 18 dB High-speed picture search: x4, x15  Freeze Mix function  Skin-tone Detail control Low-key saturation
Mass
Approx. 2.4 kg (5 lb 4 oz) (body)
Approx. 2.8 kg (6 lb 2 oz) (with lens hood, large eye cup, BP-U30 battery, one SxS PRO memory card)

Dimensions (W x H x D)
178 x 176 x 311.5 mm (7 1/8 x 7 x 12 3/8 inches) without projection

Power requirements
DC 12 V

Power consumption
Approx. 13 W (while recording, with color LCD OFF, 1920 x 1080/59.94i mode)

Operating temperature
0 to +40 °C (+32 to +104°F)

Storage temperature
-20 to +60°C (-4 to +140°F)

Continuous operating time
Approx. four hours with BP-U60 battery
Approx. two hours with BP-U30 battery

Recording format
Video
MPEG-2 Long GOP[br}HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14

Audio
Linear PCM (2ch, 16-bit, 48-kHz)

Recording frame rate
NTSC setting
HQ mode: 1920 x 1080/59.94i, 29.97P, 23.98P, 1280 x 720/59.94P, 29.97P, 23.98P
SP mode: 1440 x 1080/59.94i

PAL setting
HQ mode: 1920 x 1080/50i, 25P, 1280 x 720/50P, 25P
SP mode: 1440 x 1080/50i

Recording/Playback time
HQ mode
Approx. 50 min. with SBP-16 (16 GB) memory card, Approx. 25 min. with SBP-8 (8 GB) memory card

SP mode
Approx. 70 min. with SBP-16 (16 GB) memory card, Approx. 35 min. with SBP-8 (8 GB) memory card

Lens
Zoom ratio
14x (optical), servo/manual selectable

Focal length
f = 5.8 to 81.2 mm (equivalent to 31.4 to 439 mm on 35 mm lens)

Iris
F1.9 to F16 and Close, servo/manual selectable

Maximum relative aperture
1:1.9

Focus
AF/MF/Full MF selectable 800 mm to infinity (MACRO OFF), 50 mm to infinity (MACRO ON, Wide), 735 to infinity (MACRO ON, Tele)

Image stabilizer
ON/OFF selectable, shift lens

Filter thread
M77 mm, pitch 0.75 mm (on lens)

Camera
Pickup device
3-chip 1/2-inch type Exmor CMOS

Effective picture elements
1920 (H) x 1080 (V)

Optical system
F1.6 prism system

Built-in filters
ND filter
OFF: Clear, 1: 1/8ND, 2: 1/64ND

Sensitivity (2000 lx, 89.9% reflectance)
F10 (typical) (1920 x 1080/59.94i mode)

Minimum illumination
0.14 lx (typical) (1920 x 1080/59.94i mode, F1.9, +18 dB gain, with 64-frame accumulation)

S/N ratio
54 dB (Y) (typical)

Horizontal resolution
1000 TV lines or more (1920 x 1080i mode)

Shutter speed
1/33 to 1/2000 sec.

Shutter angle
180, 90, 45, 22.5, 11.25 degrees

Slow Shutter (SLS)
2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-, 32-, and 64-frame accumulation

Slow & Quick Motion function
720P
Selectable from 1 to 60 fps as recording frame rate

1080P
Selectable from 1 to 30 fps as recording frame rate

Audio performance
Sampling frequency
48 kHz

Quantization
16 bits

Headroom
20 dB

Frequency response
20 Hz to 20 kHz, +3 dB/-3 dB

Dynamic range
90 dB (typical)

Distortion
Less than 0.1% (with input level of -40 dBu)

Signal inputs/outputs
Audio input
XLR-3-pin (female) (x 2), line/mic/mic +48 V selectable
Mic: -8 dBu to -65 dBu (reference level)
Line: +4 dBu

A/V output
AV multi (x 1)
Audio: -10 dBu (reference level), 47 kΩ
Analogue composite: 1.0 Vp-p, 75 Ω unbalanced
S-Video: Y: 1.0 Vp-p, 75 Ω unbalanced, sync negative

Component output
Mini D (x 1), Y: 1.0 Vp-p, 75 Ω, Pb/Pr: 0.7 Vp-p, 75 Ω

SDI output
BNC (x 1), HD-SDI/SD-SDI selectable

i.LINK input/output
IEEE1394, 4-pin (x 1), HDV stream input/output, S400

USB
Mini-B (x 1), USB 2.0 High-speed

Headphone output
Stereo mini-jack (x 1), 16 Ω, 30 mW

Speaker output
Monaural, 300 mW

DC input
DC jack

Battery input
5-pin

--Built-in LCD monitor--
3.5-inch* type colour LCD monitor, approx. 921000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type

--Viewfinder--
0.54-inch* type colour LCD, 1120 (H) x 225 (V), 16:9

Built-in microphone
Capsule type
Omni-directional stereo electret condenser microphone

Frequency response
50 to 15000 Hz

Media slot
Type
ExpressCard/34 (x 2)

Interface
ExpressCard compatible
  • Brand New Factory Fresh Import Model
