Panasonic AG-DVX200 4K Handheld Camcorder Panasonic AG-DVX200 4K Handheld CamcorderPanasonic AG-DVX200 4K Handheld Camcorder
Panasonic Camcorders

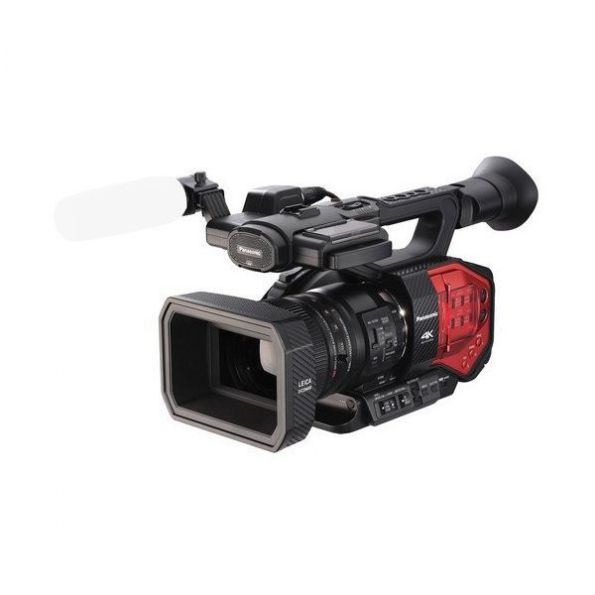

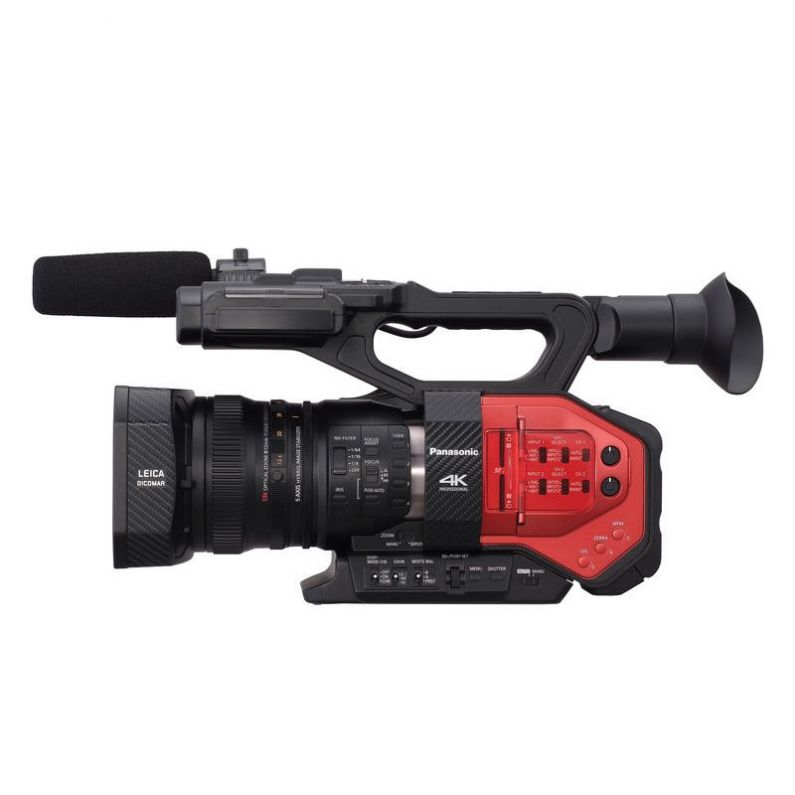

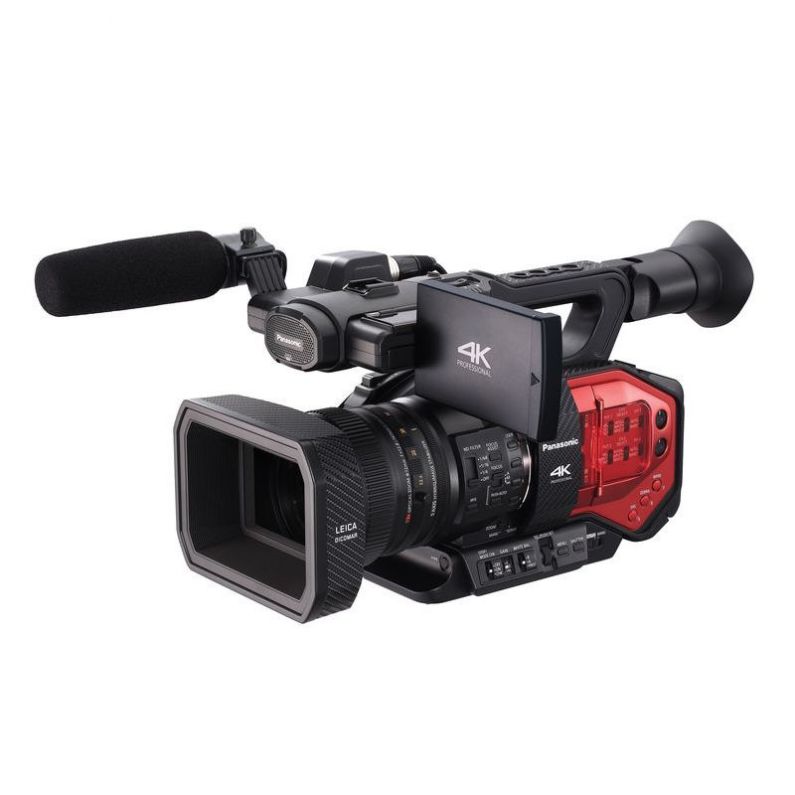

Panasonic AG-DVX200 4K Handheld Camcorder

SKU: 415441
MPN: AG-DVX200PJ
BRAND: Panasonic
CONDITION: New

Extended Warranties Available:

Availability: In Stock
Fast & Free Shipping (Ships in 1-2 Business Days)
MSRP: $3,495.00
You Pay: $2,785.00




Need help? Call Us:
800-213-7037

Filters & Filter Kits

Microphones & Light Meters

Tripods & Monopods

Screen Protectors & Cleaning Kits

The AG-DVX200PJ from Panasonic, the first in a new generation of large sensor, multi-format Professional camcorders, is capable of capturing 4K/UHD, HD, and SD, including cinematic DCI 4K 4096x2160. Designed from the ground up as a large-format camera system, the DVX200PJ provides that all important aesthetic of shallow depth of field / selective focus, but with an integrated 13X zoom for easy control over image framing as well as the ability to track your subject even in fast action. This large format 4/3” camcorder provides superb image quality in all modes, as well as unique workflow options – including a dual codec workflow borrowed from the renowned VariCam 35 production camera. Whether for cinematic or television production, news, sports, or event acquisition, the DVX200PJ delivers the perfect blend of quality, convenience, and workflow. Video Formats: The AG-DVX200 captures high quality video in cinematic DCI4K 4096x2160 at 24p, UHD 4K 3840x2160 (60p / 30p /24p), FHD (including 120fps and 24p), as well as SD. The DVX200 has a place in cinema style and reality TV 24p production, allowing Variable Frame Rate and higher speeds for special effects, and a native 60 frames per second record mode to satisfy the recent dem and of 60p UHD television production. When used in HD, its 120fps highspeed capability is ideal for slow motion capture of sports or dramatic action sequences. Video Quality: Image quality in all formats is exceptional. The large format 4/3" imager features advanced color separation filter technology to provide natural, yet accurate colors, especially skin tones. Another VariCam technology incorporated in the AG-DVX200 is V-Log, a wide dynamic range, low contrast “gamma” mode that faithfully maintains all 12 stops of the imager's scene content. The DVX200's V-Log L tonal curve matches that of the VariCam 35V-Log curve, permitting easy mixing and grading of VariCam and DVX200 in post, so the DVX200 can be used as a "crash cam" on a VariCam shoot. Recording: Recording is made to affordable, high speed SDXC cards (UHS-2/3). Recording formats include MP4 /MOV for UHD / 4K, high bit rate Iframe H.264 (MOV) for FHD, or AVCHD for HD /SD. Workflow: The AG-DVX200 offers the ability to record UHD and HD simultaneously; similar to the efficient dual codec workflow of the VariCam.Shoot UHD and HD together, use the HD as your editorial format for easy field viewing and edit selection, then conform the UHD as needed later for the final finish. Easy to Use: The compact design, yet solid feel of the camera permits easy single-handed shooting or shooting on a tripod as needed. Equipped with a Leica Dicomar 13X optical zoom lens, with three ring manual control over the lens functions (zoom, focus and iris), the camera offers creative control for any shooting style. Nine customizable user buttons facilitate shooting for many different applications. A built-in waveform monitor and level gauge (to ensure level horizons when shooting) are included. Touch Screen LCD & OLED VF: In addition to its high resolution touchscreen LCD viewfinder, the camera is also equipped with a high resolution OLED Electronic Viewfinder, which has an eye sensor and only turns on when your eye is in close proximity to the viewfinder. Its 5 Axis Optical Stabilization ensures smooth natural camera motion, even when shooting handheld at high or low angles, or on a vehicle. A new, very accurate autofocus ensures that even in 4K, and with the associated shallow depth of field, critical focus is maintained.

  • Power: DC 7.2 V (when the battery is used), DC 12 V (when the AC adaptor is used)
  • Power consumption: TBD
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 10 % to 80 % (no condensation)
  • Weight (body only, excluding lens hood, battery, and accessories): Approx. 6.0 lbs. (2.7 kg)
  • Dimensions (excluding protrusion)(HxWxD): 7-1/8" x 8-1/2" x 14-23/32" (181 x 216 x 374mm)
  • Pickup Device: 4/3-type MOS
  • Effective Pixels: 1549 megapixel (FHD), 871 megapixel (UHD/59.94p), 1289 megapixel (UHD/29.97p), 1335 megapixel (4K/24p)
  • Lens: Optical image stabilizer lens, motorized/manual mode switching, 13x zoom F2.8 to F4.5 (f=12.8mm to 167 mm) 35 mm conversion 28.0 mm to 365.3 mm (FHD)
  • Filter Diameter: 72mm
  • ND Filter: OFF, 1/4, 1/16, 1/64
  • Shortest Shooting Distance: Approx. 1.0 m from the front lens
  • Gain Setting: L/M/H selector switch 0 dB to 24 dB (in 1 dB steps) (When assigning [S.GAIN] to the USER button Switching between 30 dB and 36 dB)
  • Color Temperature Setting:
    • When [SYSTEM MODE] = 59.94 Hz
      • 60i/60p mode 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250., 1/350., 1/500 sec., 1/750 sec., 1/1000 sec.,1/1500 sec.,1/2000 sec.,1/3000 sec., 1/4000 sec.,1/8000 sec.
      • 30p mode 1/30 sec.,1/50 sec.,1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,1/4000 sec., 1/8000 sec.
      • 24p mode 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
    • When [SYSTEM MODE] = 50 Hz
      • 50i/50p mode 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
      • 25p mode 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
  • Slow Shutter Speed:
    • When [SYSTEM MODE] = 59.94 Hz
      • 60i/60p mode 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
      • 30p mode 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
      • 24p mode 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
    • When [SYSTEM MODE] = 50 Hz
      • 50i/50p mode 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
      • 25p mode 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
  • Synchro Scan Shutter:
    • When [SYSTEM MODE] = 59.94 Hz
      • 60i/60p mode 1/60.0 sec. to 1/249.8 sec.
      • 30p mode 1/30.0 sec. to 1/249.8 sec.
      • 24p mode 1/24.0 sec. to 1/249.6 sec.
    • When [SYSTEM MODE] = 50 Hz
      • 50i/50p mode 1/50.0 sec. to 1/250.0 sec.
      • 25p mode 1/25.0 sec. to 1/250.0sec.
  • Shutter Open Angle: 5.0° to 180.0° to 360.0° (in 0.5° steps, angle display)
  • VFR Recording Frame Rate:
    • When [SYSTEM MODE] = 59.94 Hz
      • 60p mode 2, 15, 30, 40, 55, 58, 60, 62, 65, 75, 90, and 120 (frames per second)
      • 30p mode 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, and 120 (frames per second)
      • 24p mode 2, 12, 18, 20, 22, 24, 26, 28, 30, 36, 48, 60, 72, 84, 96, and 120 (frames per second)
    • When [SYSTEM MODE] = 50 Hz
      • 50p mode 2, 12, 25, 33, 45, 48, 50, 52, 55, 62, 75, 100, and 120 (frames per second)
      • 25p mode 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 100, and 120 (frames per second)
  • Minimum Subject Illumination: 0.2 lx (F2.8, gain 18dB, [1/2S.] Manuals low shutter, [HIGH SENS.] mode)
  • Horizontal Resolution: 1000 TV or higher (center)
  • Digital Zoom: x2/x5/x10
  • Lens Hood: Hood with lens cover
  • Recording Media: SDHC memory card (4 GB to 32 GB), SDHX memory card (48GB to 128 GB), UHS-I supported
    *When recording video images at 100 Mbps or higher, an SD memory card compatible with UHS Speed Class 3 (U3) is required.
  • Recording Slot: Slot ×2
  • System Format: 59.94 Hz (NTSC) / 50 Hz(PAL)
  • Video Recording Format:
    • Recording Format MOV, MP4, AVCHD
    • Recording Mode: *Please see the video Recording Format table attached in images
  • Still Picture Recording Format:
    • JPEG (DCF/Exif2.2) supported
    • 8.8M 4096 x 2160 (179), 8.3M 3840 x 2160 (169), 2.1M 1920 x 1080 (169), 0.9M 1280 x 720 (169), 0.2M 640 x 360 (169), 0.3M 640 x 480(43)
  • External Output Video Signal: 8-bit 422/10 bit 422 (switchable menu)
    *HDMI output of UHD/59.94p/50.00p becomes 8-bit/420. Also, when 10-bit/422 is selected, recording is not possible with the main unit.
  • Recording Video Signal: 8-bit/420
  • Video Compression Format (Digital Video): MPEG-4AVC/H.264 High Profile (MOV/MP4/AVCHD)
  • Recording Audio Signal: 48 kHz/16 bit, 2 CH
  • Audio Compression Format (Digital Audio): LPCM (MOV/MP4) Dolby Digital (AVCHD)
  • Headroom: 12 dB/18 dB/20 dB (switchable menu)
  • File Format: MOV, MP4
  • Video Compression Format (Dual Codec): MPEG-4AVC/H.264 High Profile
  • Audio Compression Format (Dual Codec): LPCM
  • Recording Format:
    • When [Dual Codec] = FHD 50 Mbps
      • [Main Recording Side]
      • Recording mode = MOV/MP4
      • UHD/29.97p/25.00p/23.98p 100 Mbps
    • [Sub Recording Side]
      • Recording mode = Same as the recording mode of the Main Recording Side
    • FHD/29.97p/25.00p/23.98p 50Mbps
    • When [Dual Codec] = FHD 8Mbps
      • FHD/59.94p/50.00p/29.97p/25.00p/23.98p 200 Mbps
      • FHD/59.94p/50.00p 100 Mbps
      • Recording mode = MOV
      • FHD/59.94p/50.00p/29.97p/25.00p/23.98p 8 Mbps
    • SDI OUT (Video Input/Output):
      • BNC ×1, 0.8 V [p-p], 75 Ohm, 3 G/1.5 G HD-SDI, SD-SDI supported
      • Output format 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/24.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94i, 576/50.00i
    • VIDEO OUT: BNC × 1, Composite 1.0 V [p-p], 75 Ohm
    • HDMI OUT (Video Input/Output):
      • HDMI × 1 (HDMI type A terminal, not compatible with VIERA Link)
    • Output format:
      • 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
    • Built-in Microphone: Supports stereo microphone
    • XLR IN:
      • XLR (3 pin) × 2 (INPUT1, INPUT2)
      • Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
      • LINE 4 dBu/0 dBu (switchable menu)
      • MIC -40 dBu/ -50 dBu/ -60 dBu (menu)
    • SDI OUT (Audio Output): 2 CH (LPCM) switchable gain 0dB/-6 dB/-12 dB
    • HDMI OUT (Audio Output): 2CH (LPCM)
    • Audio OUT: 3.5 mm diameter stereo mini jack × 1, Output level 600 ohm, 316 mV
    • Headphone: 3.5 mm diameter stereo mini jack ×1
    • Speaker: 20 mm diameter, round × 1
    • CAM REMOTE:
      • 2.5 mm diameter super mini jack ×1 (ZOOM, S/S)
      • 3.5 mm diameter mini jack ×1 (FOCUS, IRIS)
    • TC PRESET IN/OUT:
      • BNC × 1, Used as the input and output terminals, IN/OUT switch selection
      • Input 1.0 V to 4.0 V [p-p], 10 k Ohm
      • Output 2.0 V ±0.5 V [p-p], low impedance
    • USB 3.0 HOST:
      • Standard-A connector, 9-pin
      • USB hard disk connected function, Bus power supply
        *A USB hard disk of 32 GB or less, or exceeding 2TB, cannot be used.
    • USB 3.0 DEVICE: Micro-B connector, 10-pin (Mass storage function (read only))
    • DC IN 12 V: DC 12 V (11.4 V to 12.6 V), EIAJ type 4
    • LCD Monitor: 4.3 type HD color monitor (Approx. 2760000 dots)
    • Viewfinder:
      • 0.39 type OLED (organic EL display)
        (Approx. 2360000 dots, video display area Approx. 1770000 dots)
  • Brand New Factory Fresh Import Model
